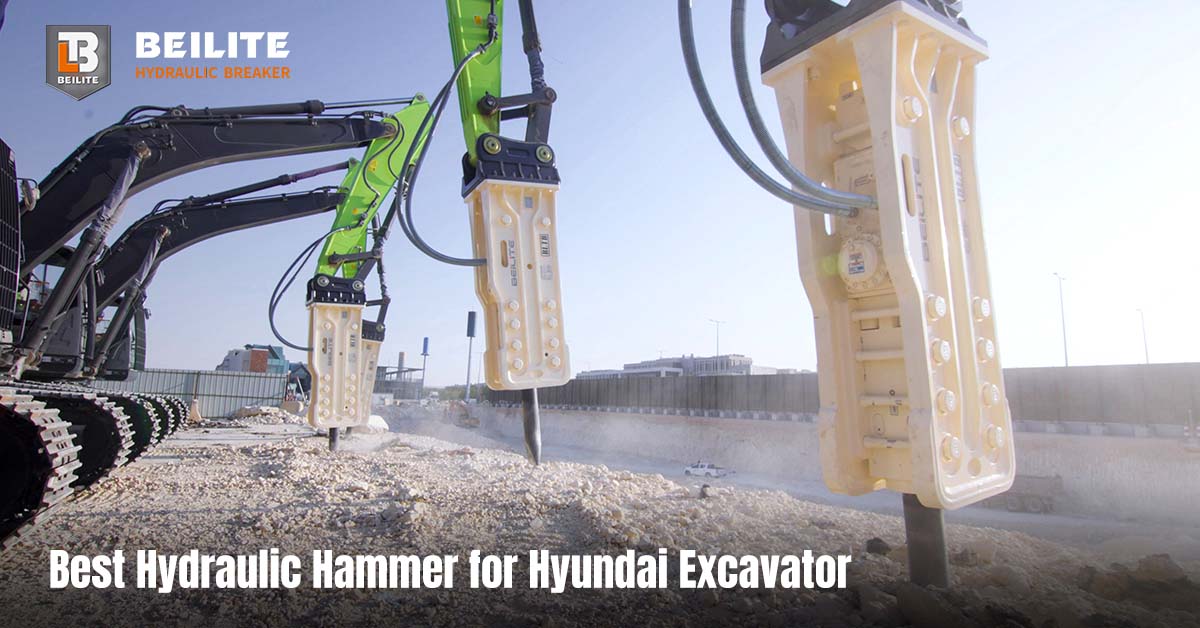

Best Hydraulic Hammer for Hyundai Excavator

Date: 2026-07-28 05:45

For Hyundai excavator fleet owners and contractors, equipping machines with the right hydraulic breaker is essential to maximizing job site productivity. While Hyundai excavators (from the compact HX/R-series to heavy mining giants) are renowned for their hydraulic efficiency, fuel economy, and strong breakout force, matching them with an improper hydraulic hammer quickly leads to severe operational bottlenecks.

Equipment owners frequently face critical challenges such as hydraulic mismatches leading to overheating and blown seals, carrier structural fatigue caused by violent recoil vibrations, and costly unplanned downtime from lower-quality breaker failures. Beilite (BLTB) Hydraulic Hammers are specifically engineered with wide hydraulic flow tolerances, high impact energy outputs, anti-blank firing technology, and reinforced housings to eliminate these bottlenecks and integrate seamlessly into your Hyundai fleet.

Beilite (BLTB) Hydraulic Hammer & Hyundai Excavator Matching Chart

The table below outlines technical specifications for the entire Beilite BLTB Breaker Series to help you select the exact match for your Hyundai excavator’s operating weight, auxiliary hydraulic flow, and working pressure.

Breaker Model	Silenced Weight (kg)	Chisel Dia. (mm)	Operating Flow (L/min)	Operating Pressure (bar)	Impact Energy (J)	Target Hyundai Excavator Models	Carrier Weight (t)
BLTB-40	86	40	15–30	90–120	130	HX17AZ, R17Z-9A	0.5 – 1.2 t
BLTB-45	137	45	20–40	90–120	250	HX27AZ, R27Z-9	0.8 – 1.5 t
BLTB-53	180	53	20–50	90–120	350	R30Z-9AK, HX35AZ	1.5 – 3.5 t
BLTB-60	263	60	30–60	100–130	440	HX40A, HX48AZ	3.0 – 5.5 t
BLTB-70	362	70	40–70	110–140	540	HX55ACR, R55-9A, HX60A	4.5 – 6.0 t
BLTE-75	466	75	50–90	120–150	785	R60CR-9A, R80CR-9A	6.0 – 8.5 t
BLTB-85	666	85	60–100	130–160	1,260	HX85A, HX90A	7.0 – 11.0 t
BLTB100	986	100	80–110	150–170	1,960	HX130A LCR, HX140A L	10.0 – 14.0 t
BLTB-125	1,357	125	90–120	150–170	2,550	R140LC, HX160A L, HX180A L	14.0 – 18.0 t
BLTB-135	1,736	135	120–180	160–180	3,600	HX210A L, R215, R220LC-9S	18.0 – 22.0 t
BLTB-140	1,910	140	120–180	160–180	3,690	HX220A L, HX235A LCR	20.0 – 24.0 t
BLTB-150	2,318	150	150–210	180–200	5,400	HX260A L, R260LC	24.0 – 27.0 t
BLTB-155	2,610	155	180–240	200–220	6,172	HX300A L, R300LC	27.0 – 33.0 t
BLTB-165	3,149	165	200–260	210–230	8,600	HX350A L, R380LC-9SH	33.0 – 38.0 t
BLTB175D	4,575	175	210–260	230–250	15,000	HX380A L, HX400A L	36.0 – 45.0 t
BLTB-185	5,180	185	230–280	250–270	24,000	HX480A L, R480LC	45.0 – 55.0 t
BLTB-190	5,420	195	260–310	260–280	28,000	HX520A L, R520LC	50.0 – 60.0 t
BLTB-210	7,052	210	340–400	280–300	36,500	R800LC	60.0 – 75.0 t
BLTB-220	9,601	220	390–450	300–330	41,500	HX800A L	68.0 – 85.0 t
BLTB-245	11,980	245	450–550	300–330	49,000	HX1000A L	90.0 – 130.0 t
BLTB-260	12,166	260	490–590	300–330	56,000	R1200LC	90.0 – 160.0 t

Step-by-Step Installation Guide for Hyundai Excavators

Proper mechanical mounting and hydraulic line connection ensure high demolition efficiency and protect your Hyundai machine’s main pump.

Mechanical Mounting: Park the Hyundai excavator on flat ground. Lower the arm to align the stick and link pin holes with the top bracket of the Beilite hammer. Insert the mounting pins and secure them with retaining bolts and cotter pins.
Depressurize and Connect Hoses: Shut off the engine and cycle the pilot joysticks to release residual pressure in the line. Close the stop valves on both sides of the excavator arm, remove blind plugs, and connect the high-pressure supply line (IN) and return line (OUT).
Set Pressure & Flow on Hyundai Monitor: Start the engine and open the Hyundai Cluster Monitor menu. Select One-Way Breaker Mode and configure the auxiliary flow rate (L/min) to match your Beilite breaker’s specific target range.
Air Bleeding & Operational Test: Open the arm stop valves. Run the engine at low idle and actuate the breaker pedal intermittently for 2–3 minutes without contacting rock to purge trapped air from the circuit.

Essential Operation & Maintenance Tips

Calibrate Sub-Relief Valves: Always test and adjust your excavator’s auxiliary relief valve setting before initial use. Unregulated pressure spikes blow out internal seals and damage pistons.
Regular Greasing: Apply high-temperature molybdenum disulfide grease to the chisel bushings every 2 hours of continuous operation to prevent premature bushing galling.
Avoid Blank Firing & Prying: Never engage the hammer unless the chisel is firmly pressed against the target surface. Never use the breaker chisel as a lever to pry rocks.

Partner with Beilite Hydraulic Hammer Manufacturer Today!

Are you ready to optimize your Hyundai excavator’s breaking efficiency with field-tested, heavy-duty hydraulic hammers?

As a leading global Hydraulic Hammer Manufacturer, Beilite (BLTB) provides factory-direct pricing, OEM/ODM solutions, full bracket customization, and rapid global spare parts supply.

Get a Free Custom Quote: Contact our engineering team today to receive a personalized quote tailored to your excavator model and local project conditions.
Email: [email protected]
Website: https://www.beilite.com/en/index.html
Global Sales & Technical Support: Contact Beilite Machinery to consult directly with our technical experts!

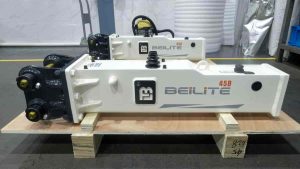

Previous: Top 10 Hydraulic Hammer for Kobelco Excavator: Best Breaker Models for Every Machine Size

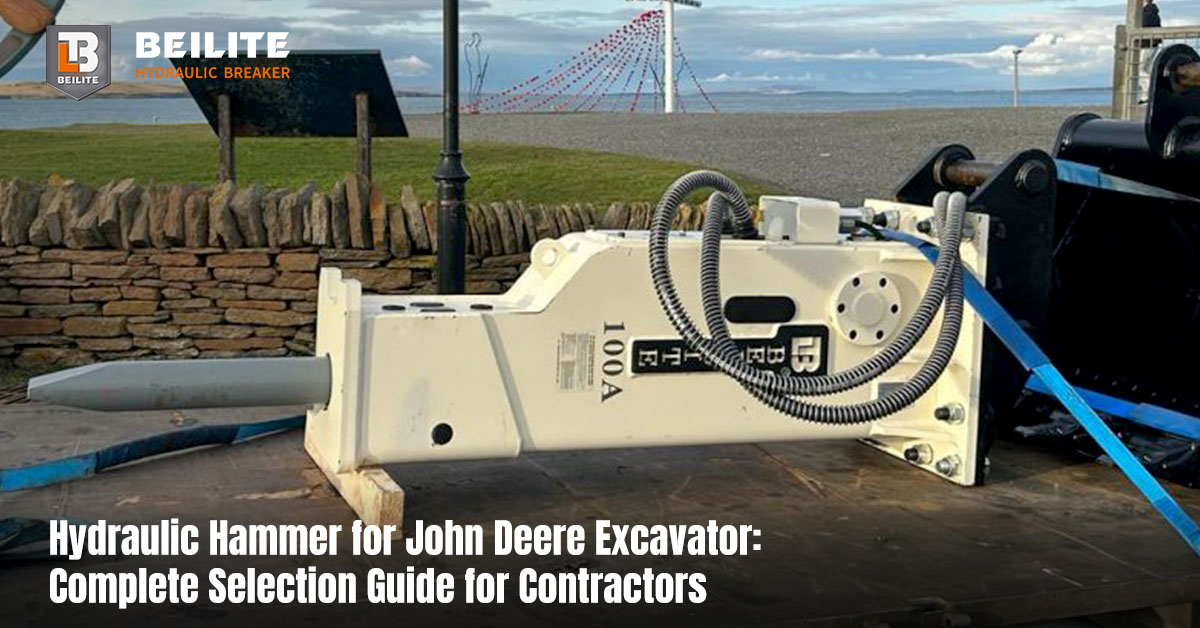

Next: Hydraulic Hammer for John Deere Excavator: Complete Selection Guide for Contractors
